Modification of a charging adapter for round cells

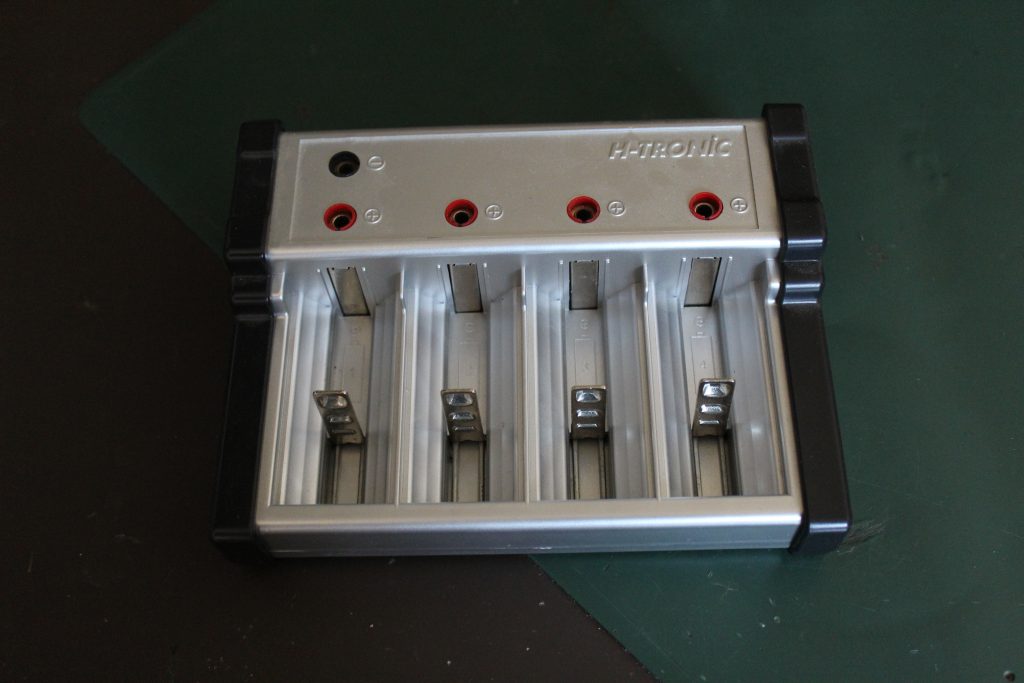

That is how it began. I wanted to modify the charging adapter from a common negative to a separate negative for each bay to charge single batteries independently.

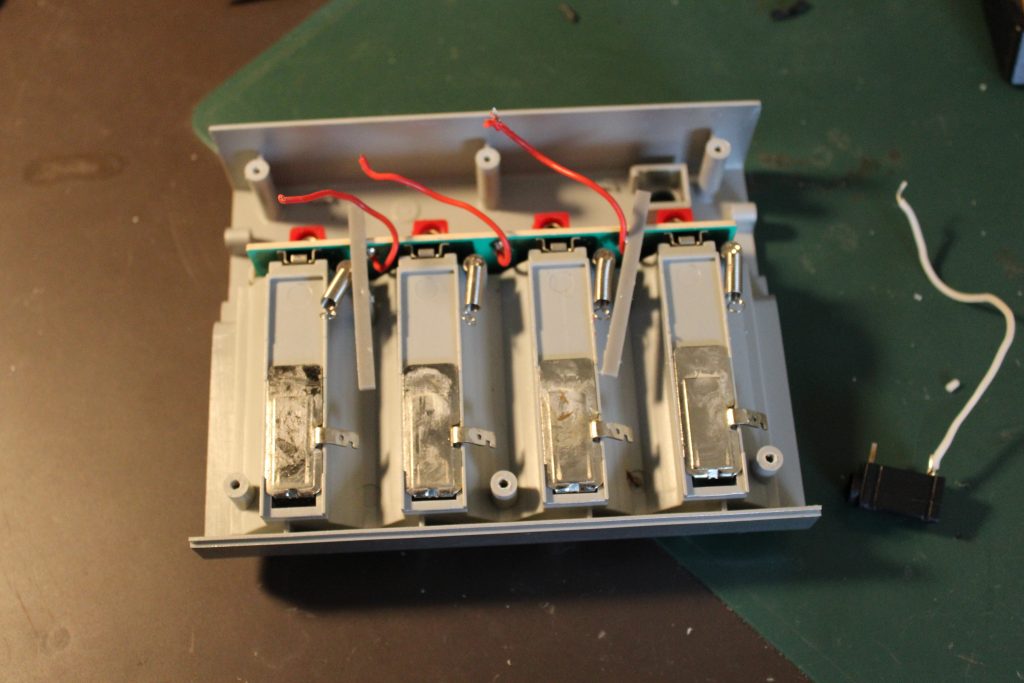

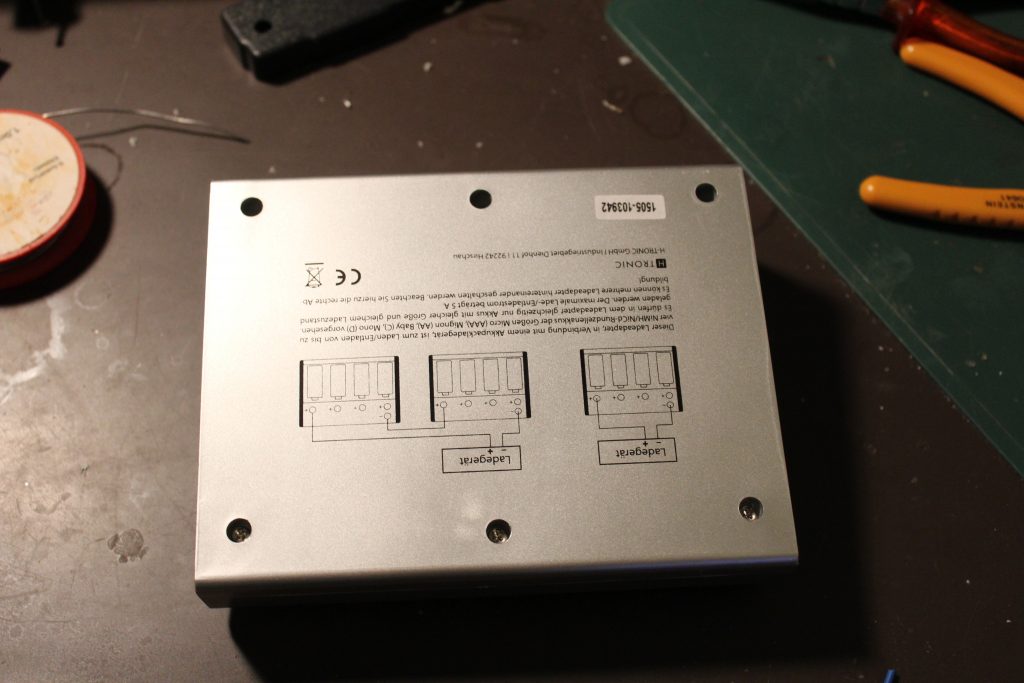

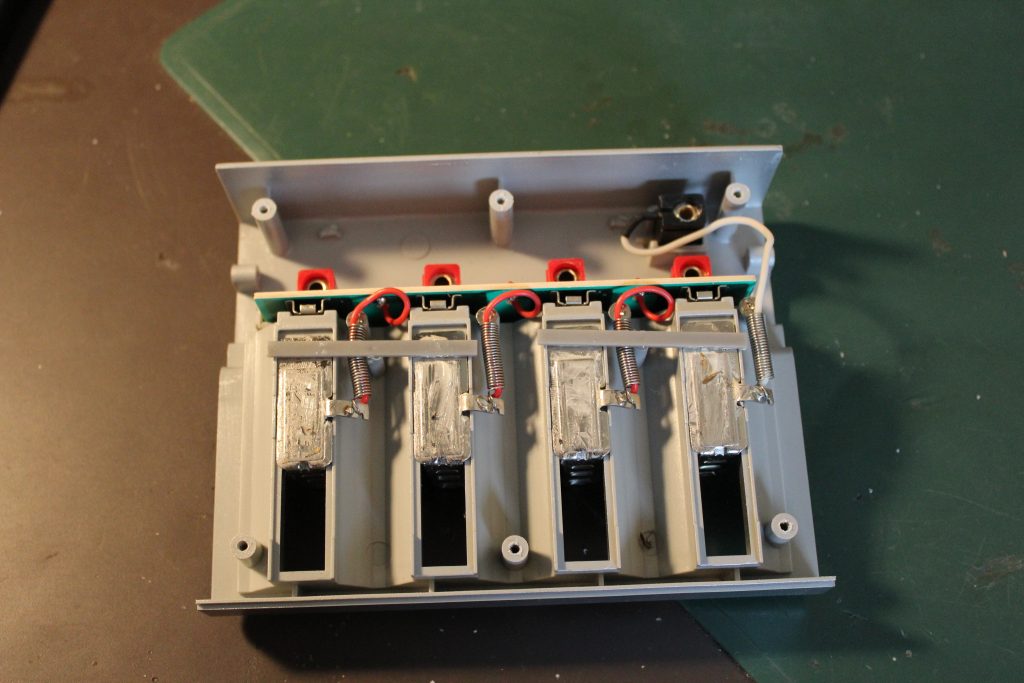

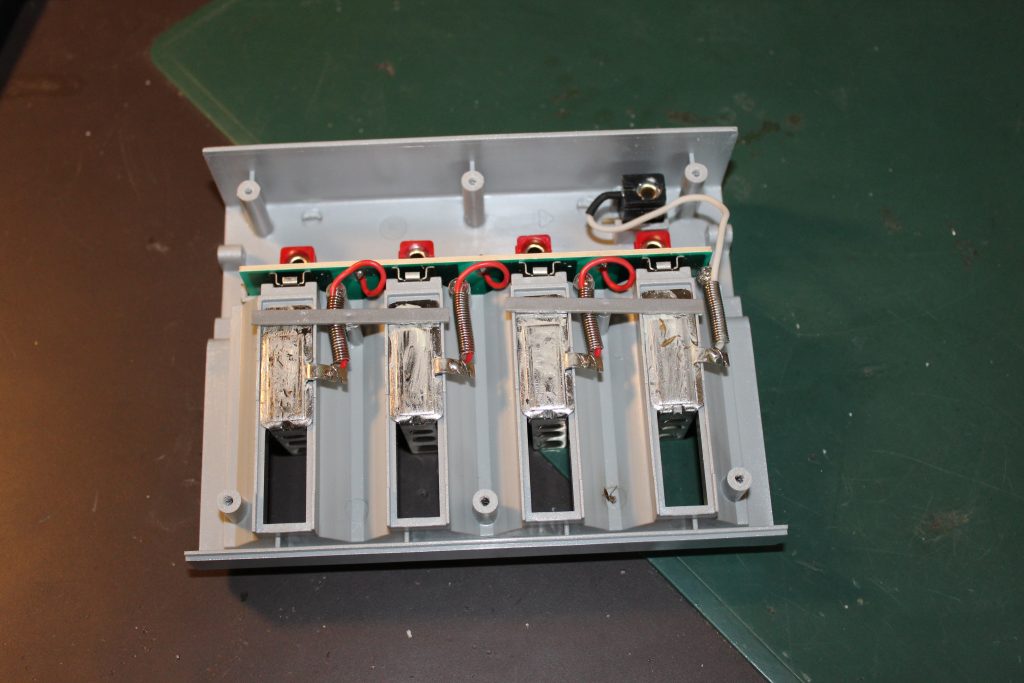

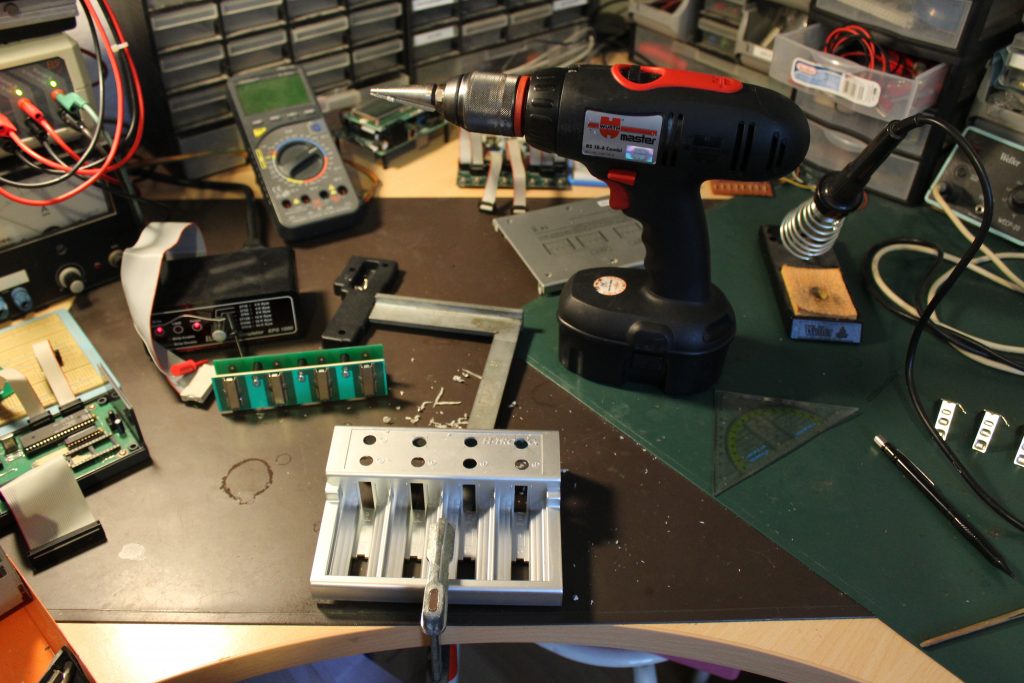

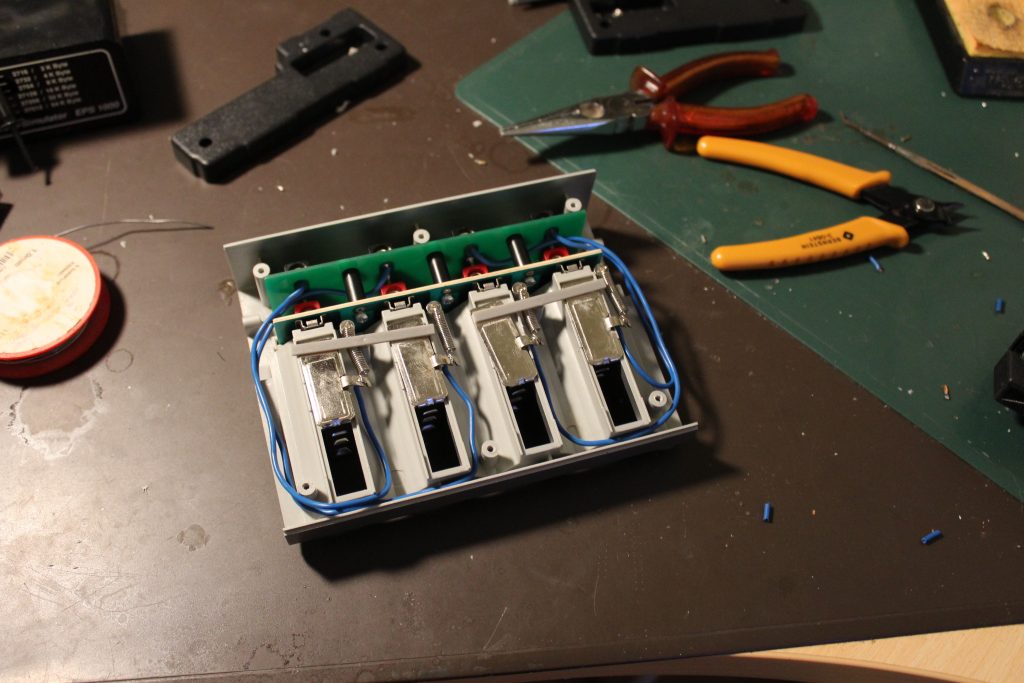

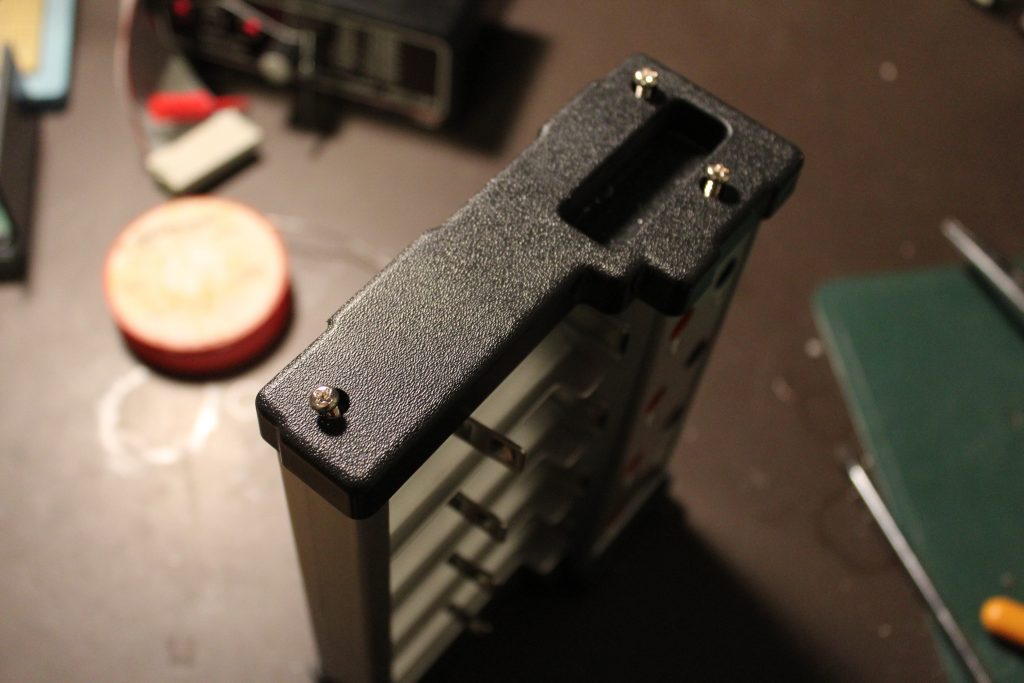

To do that, I had to open it and figure out how everything is connected.

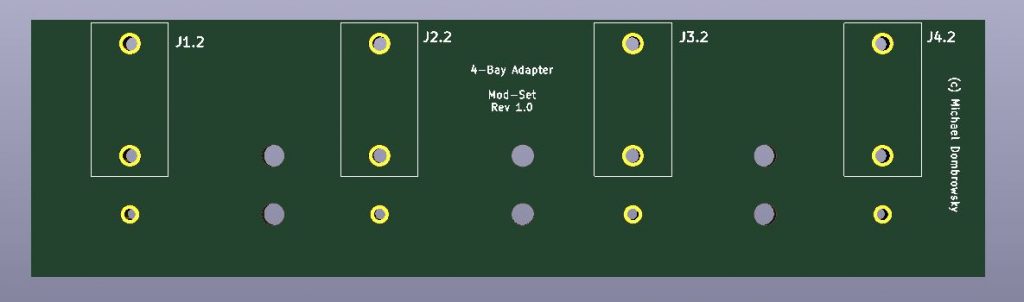

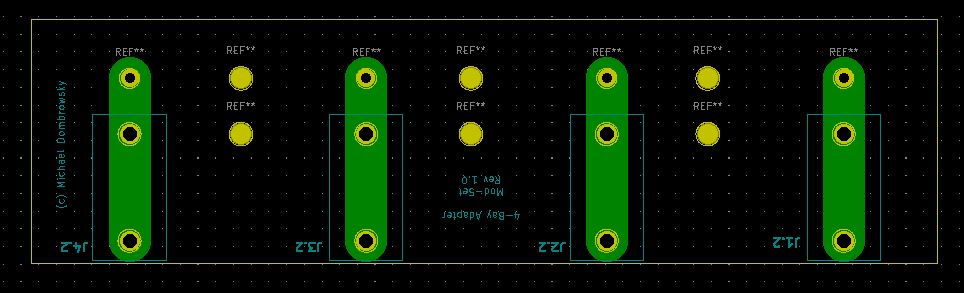

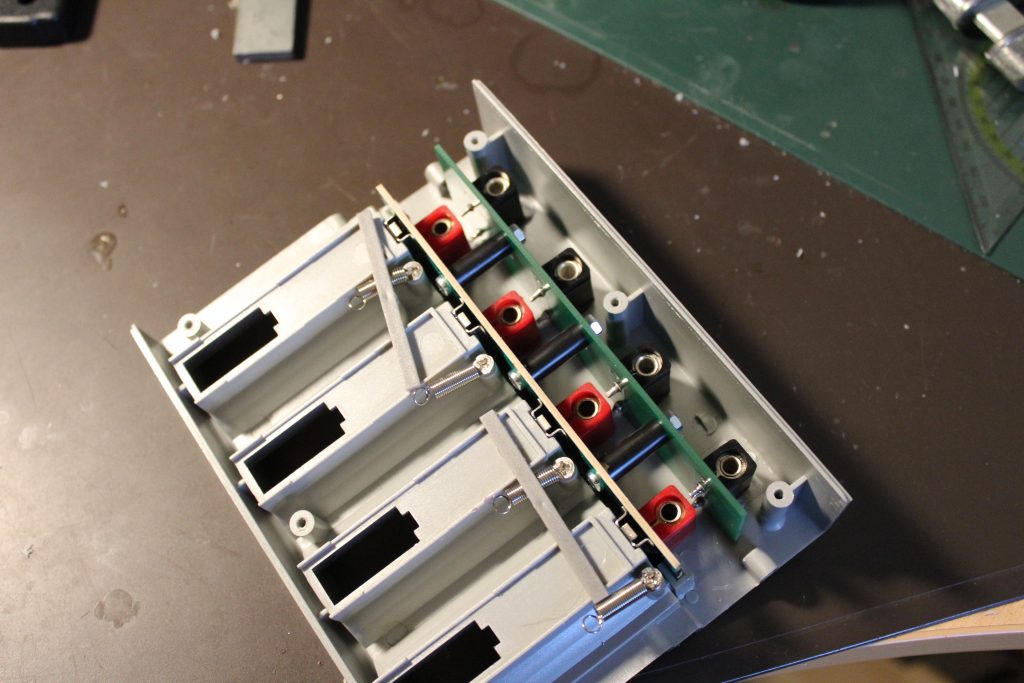

Now I had to make an additional circuit board to carry the additional connectors. I usually use KiCad.

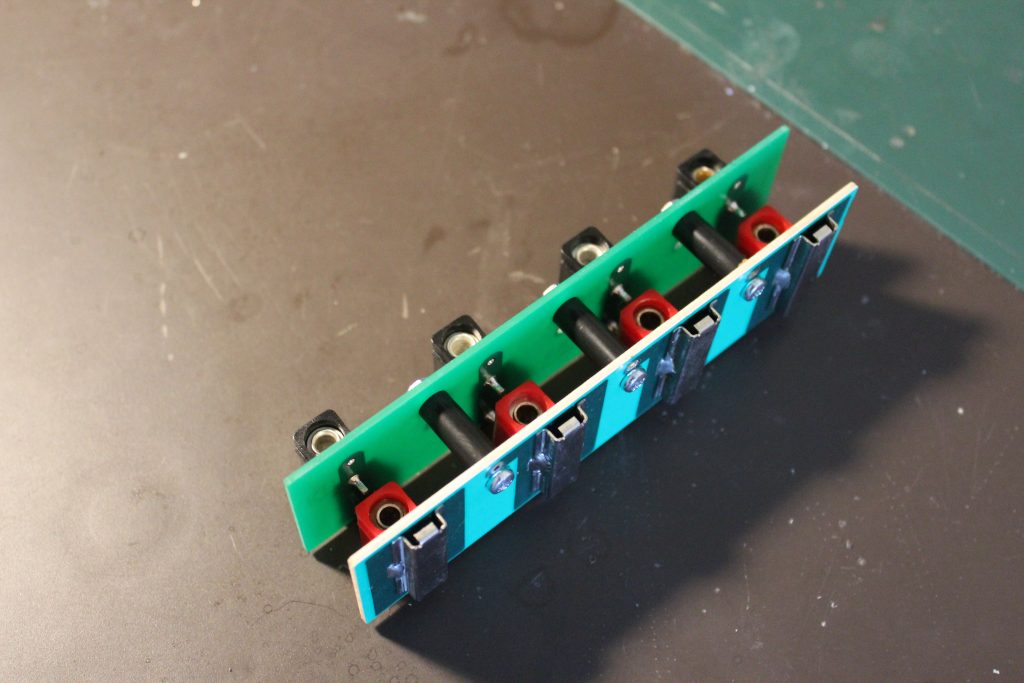

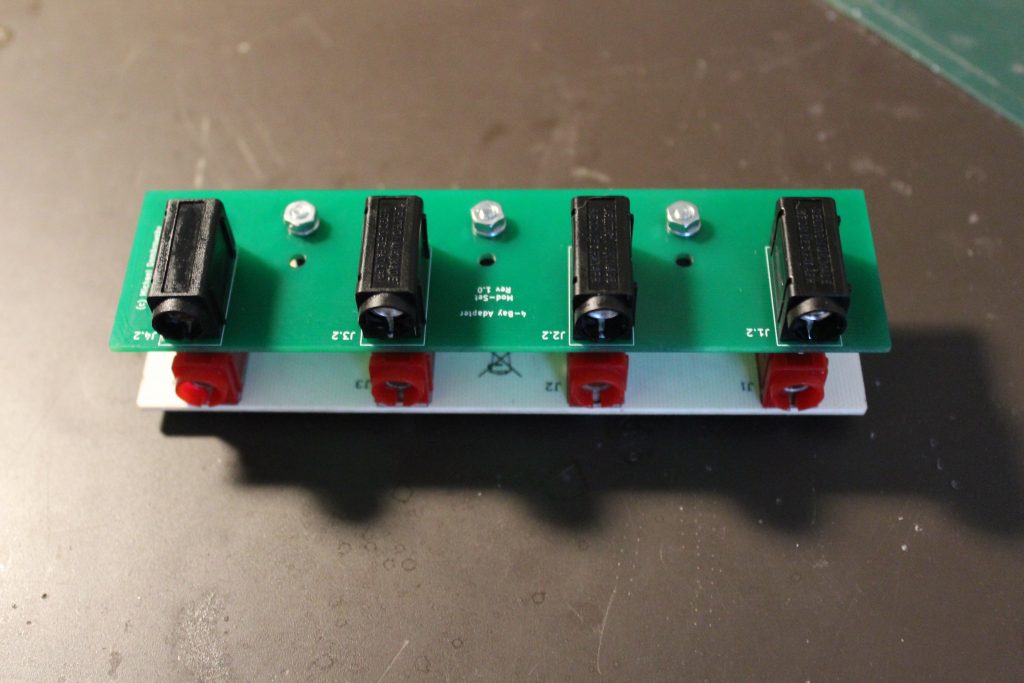

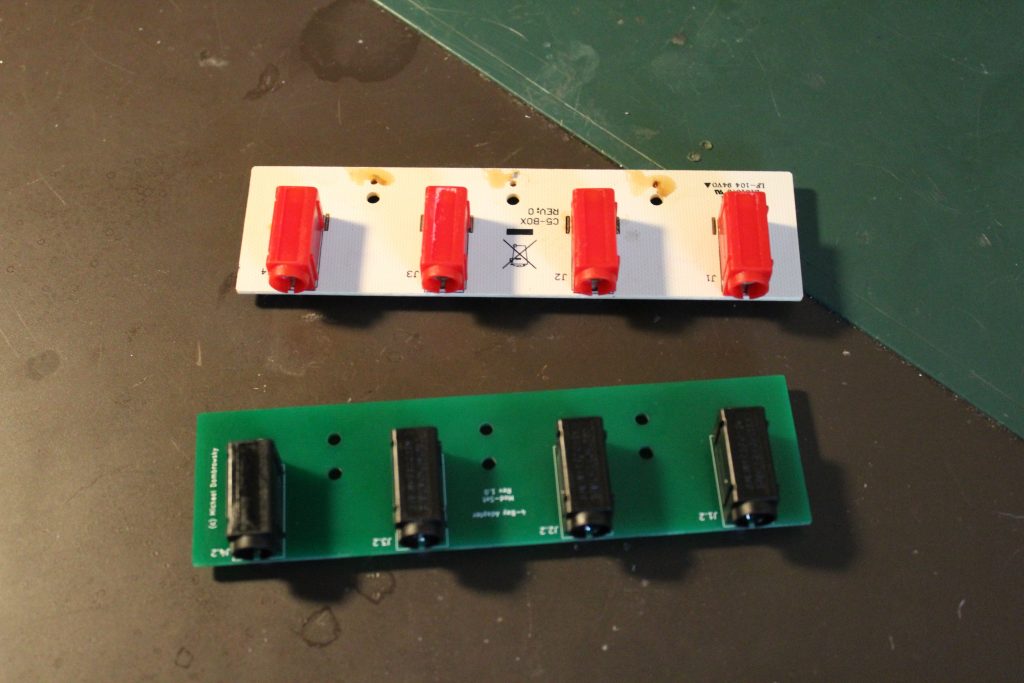

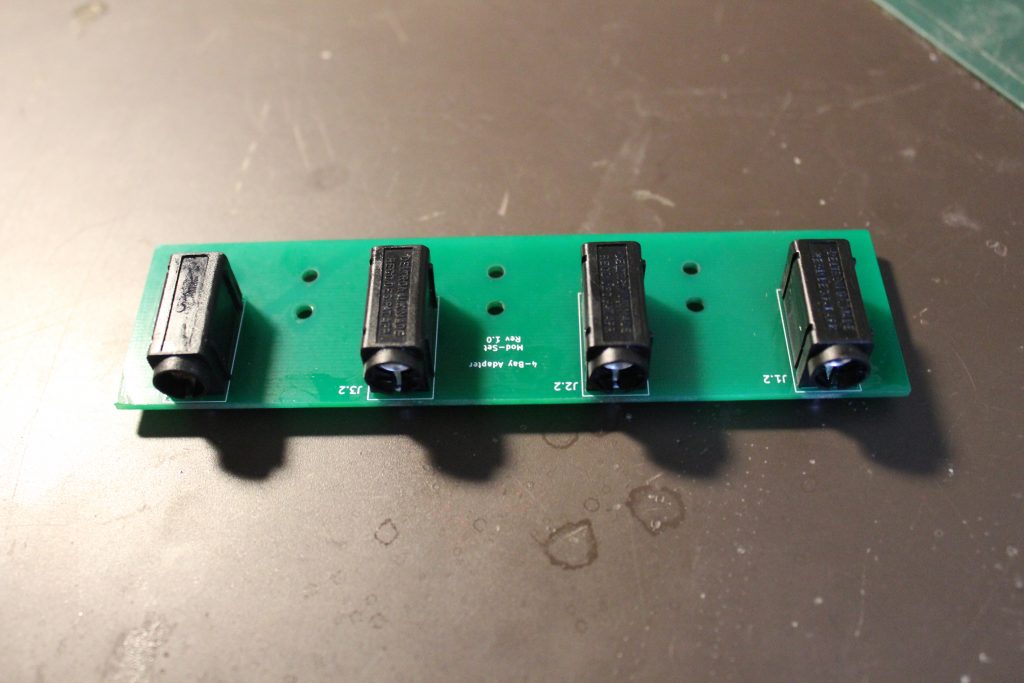

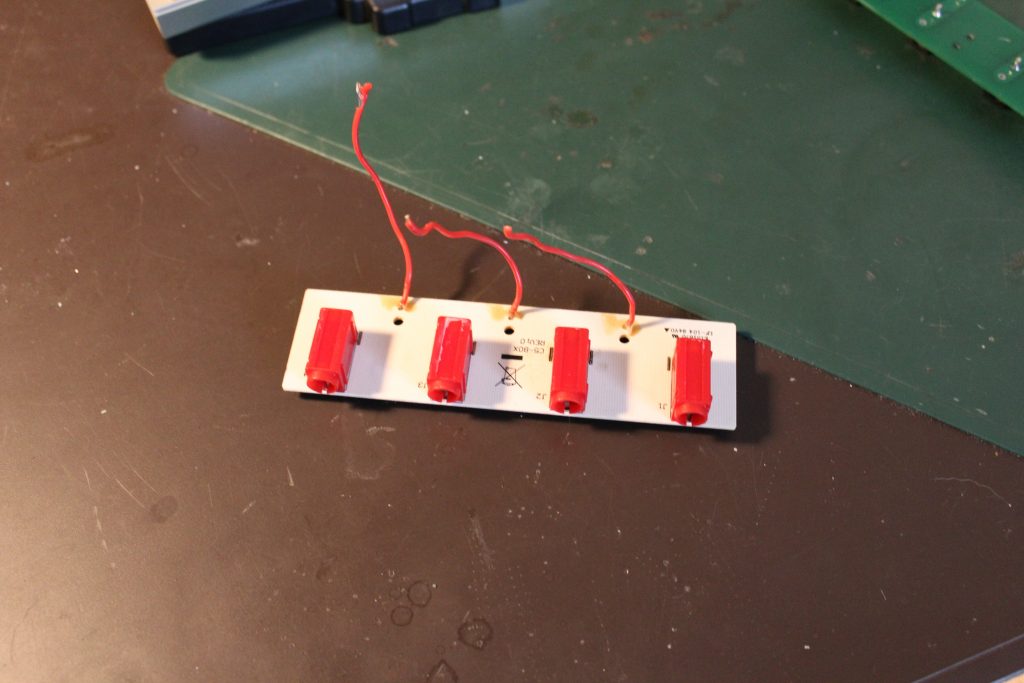

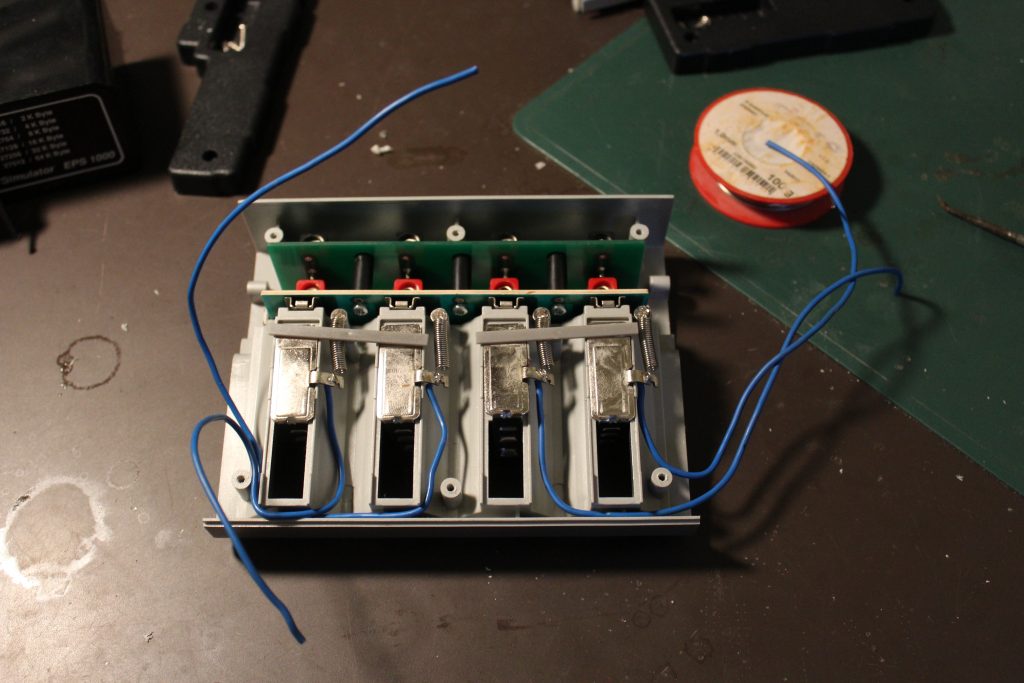

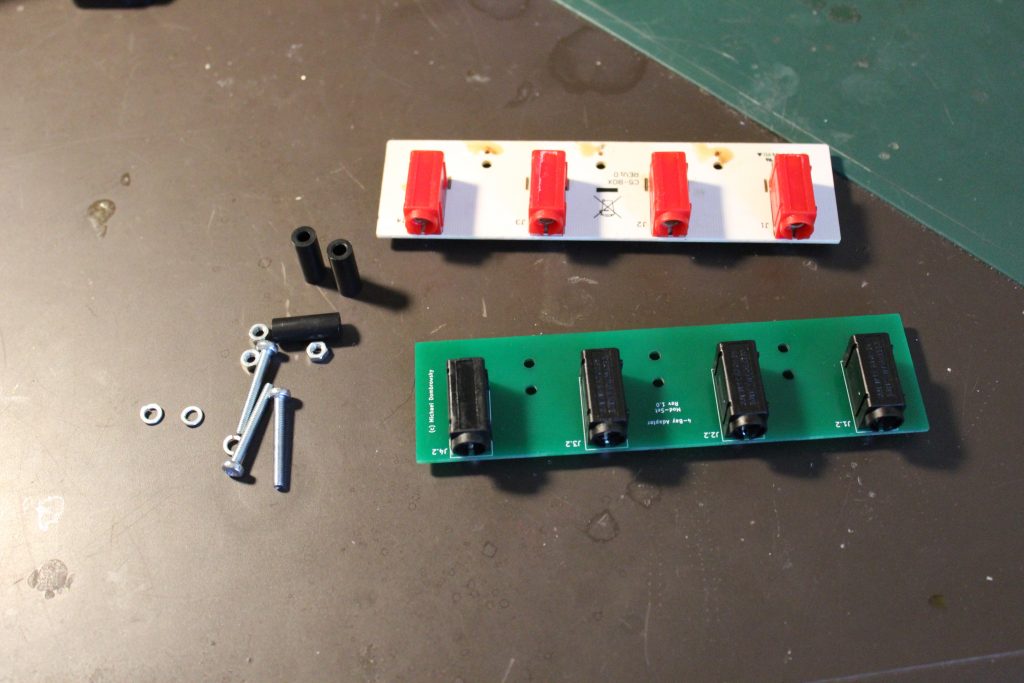

Here the two boards.

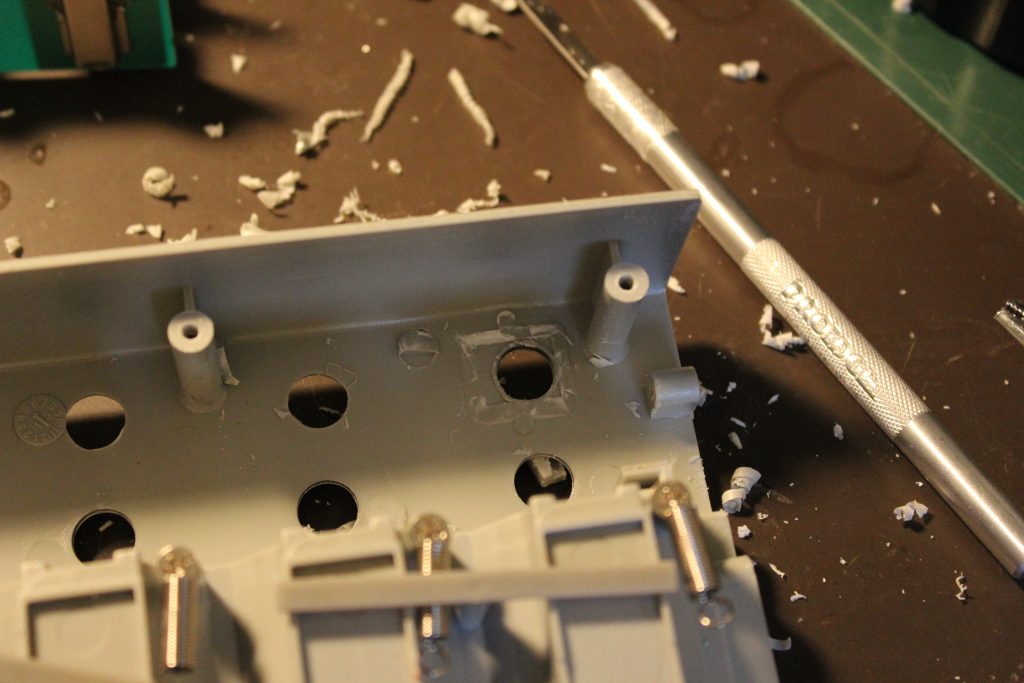

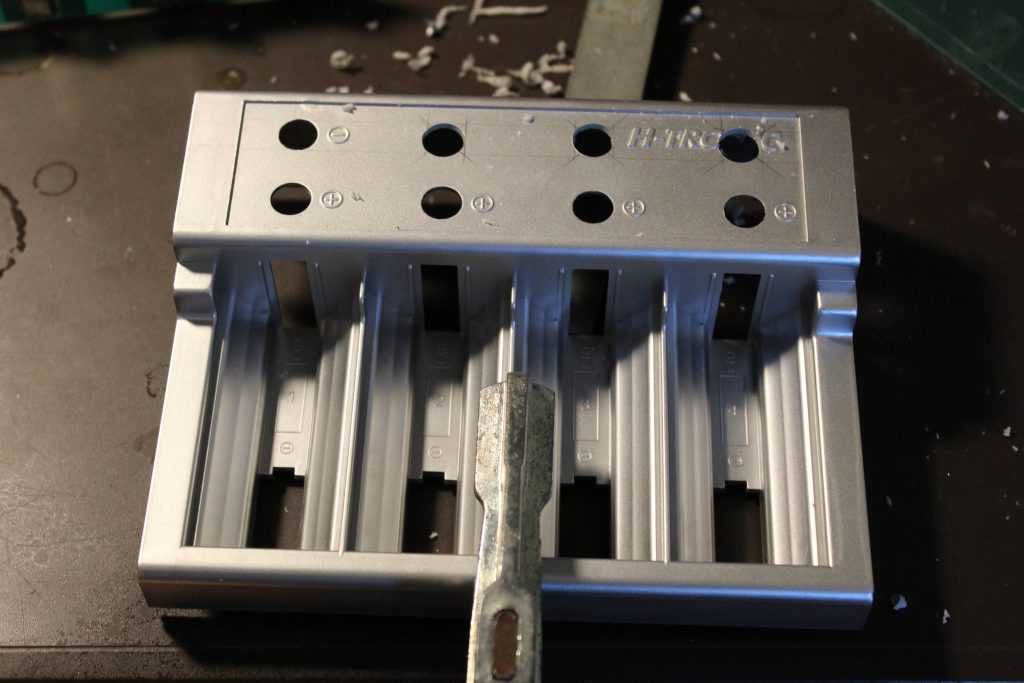

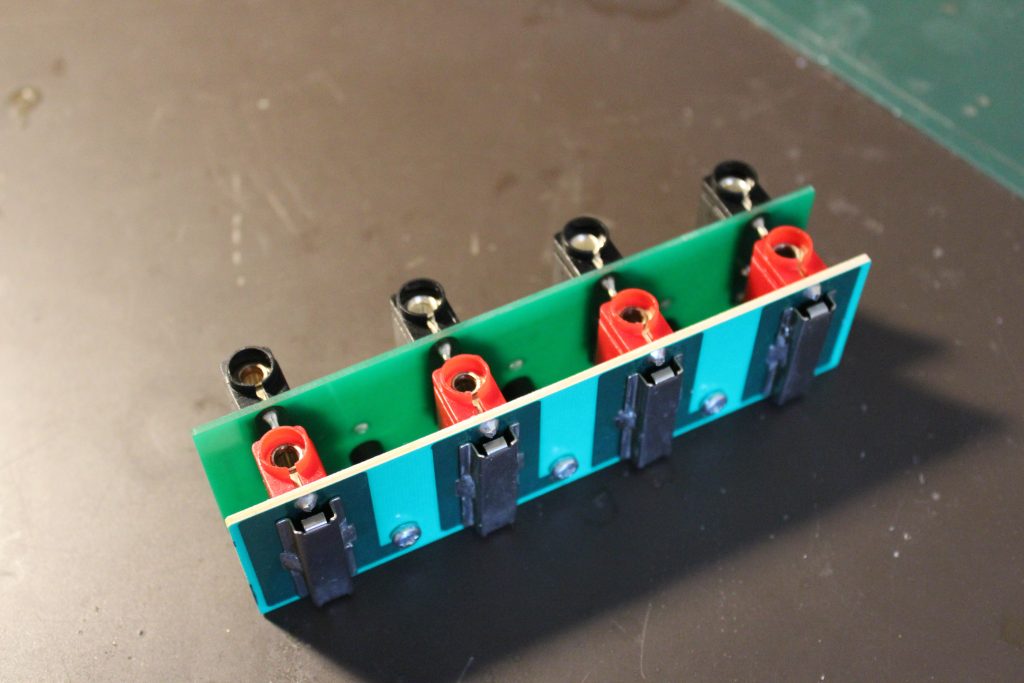

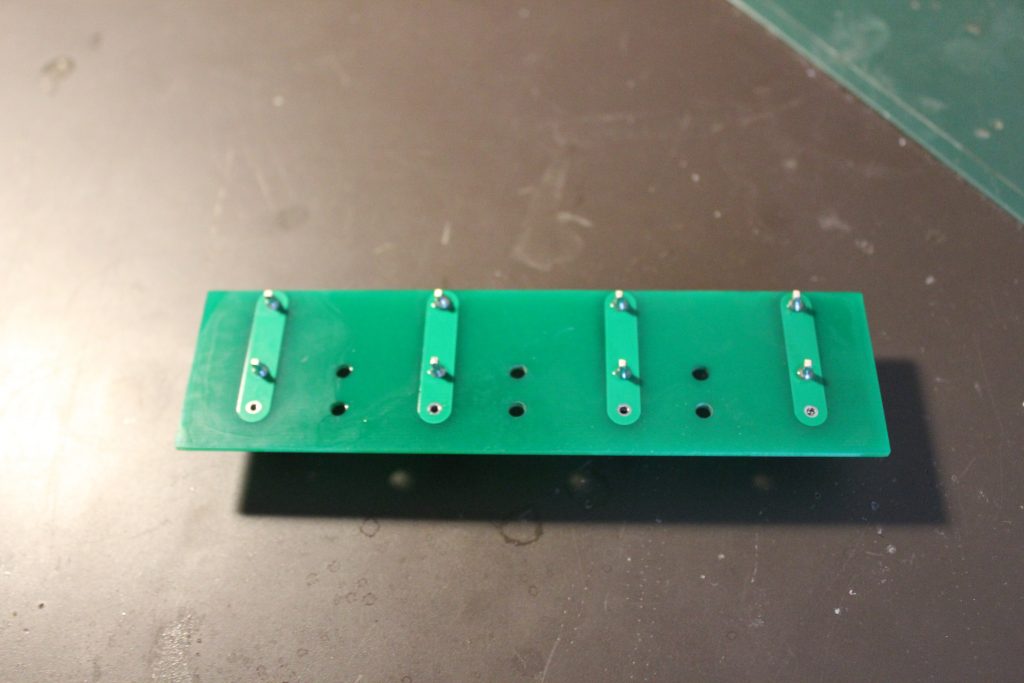

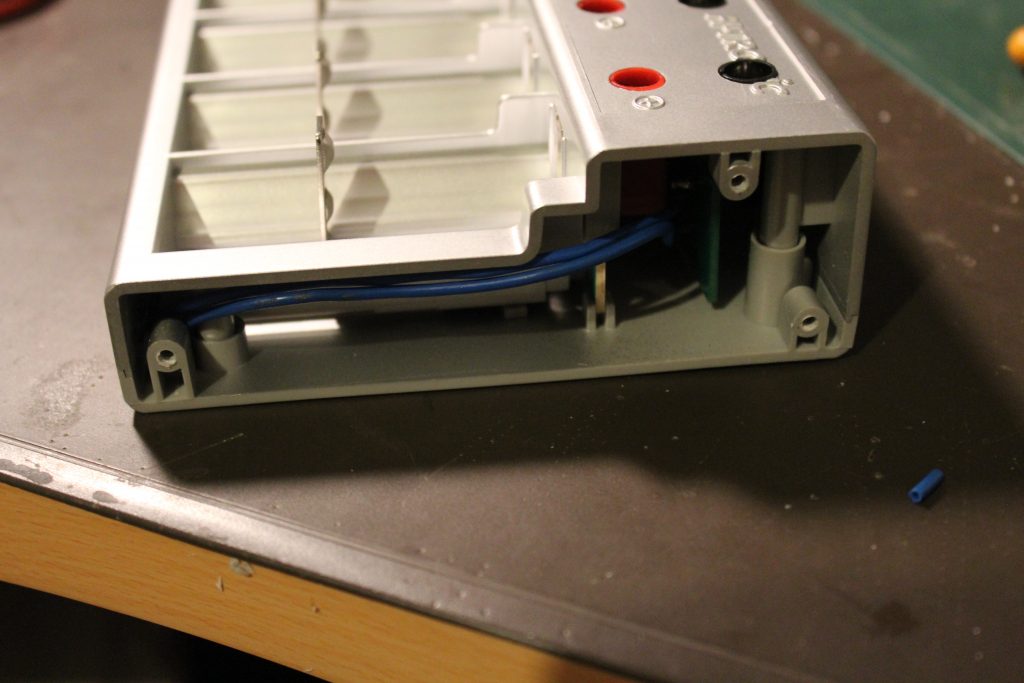

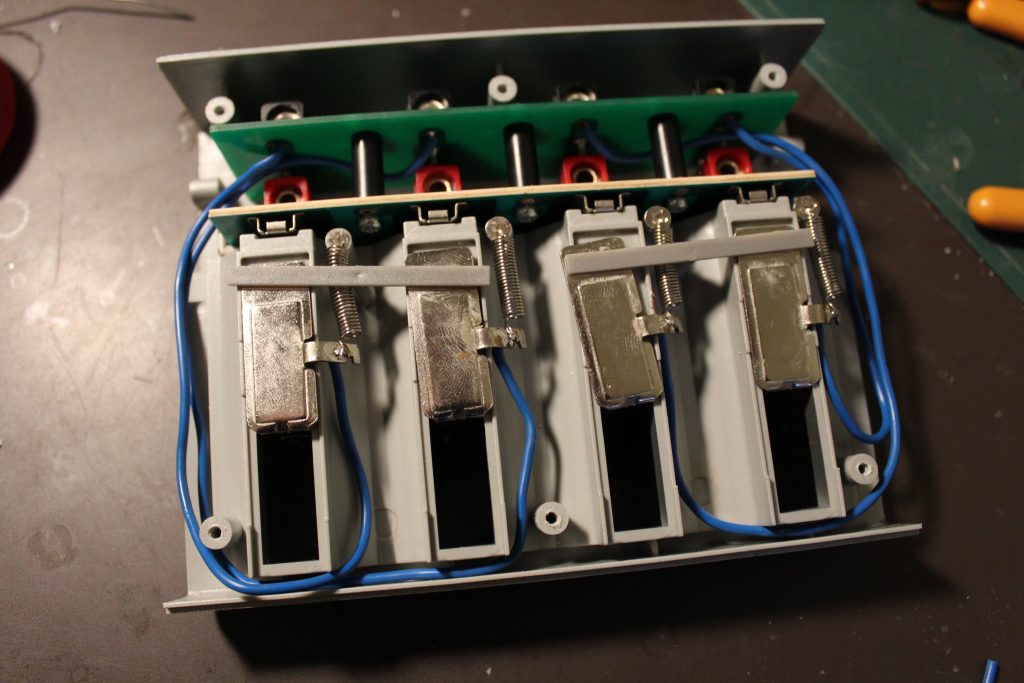

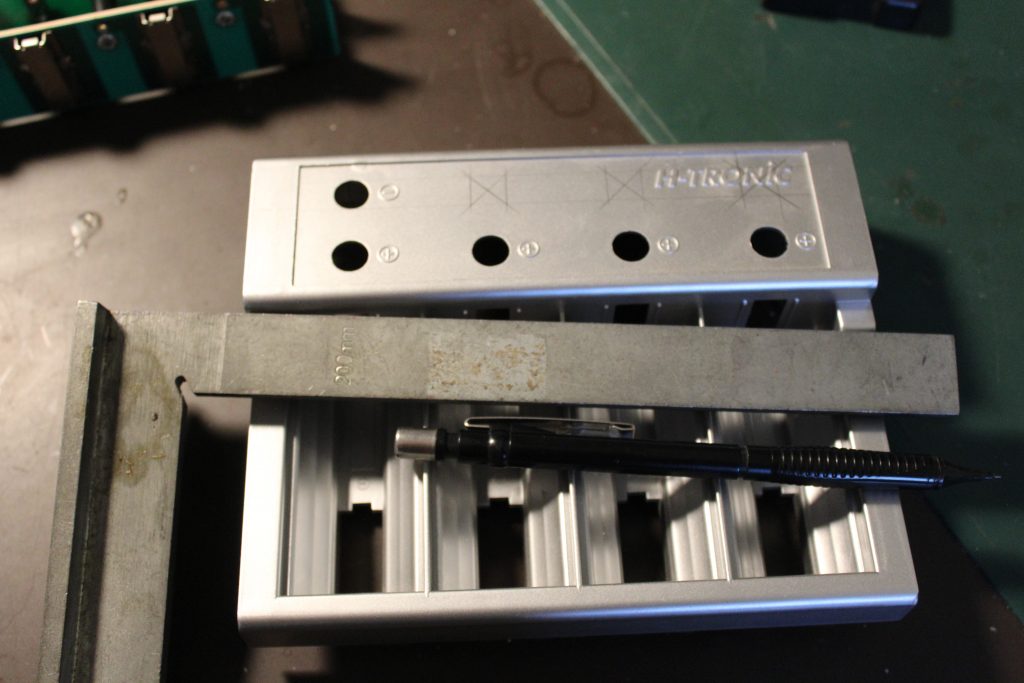

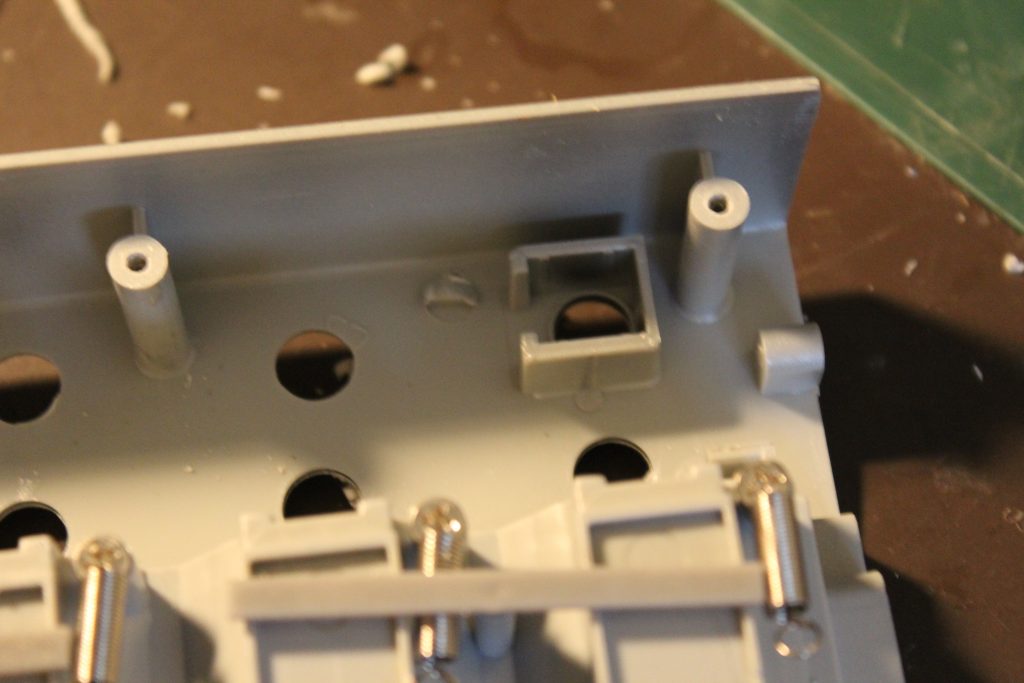

A little bit of mechanical work and we are almost done.

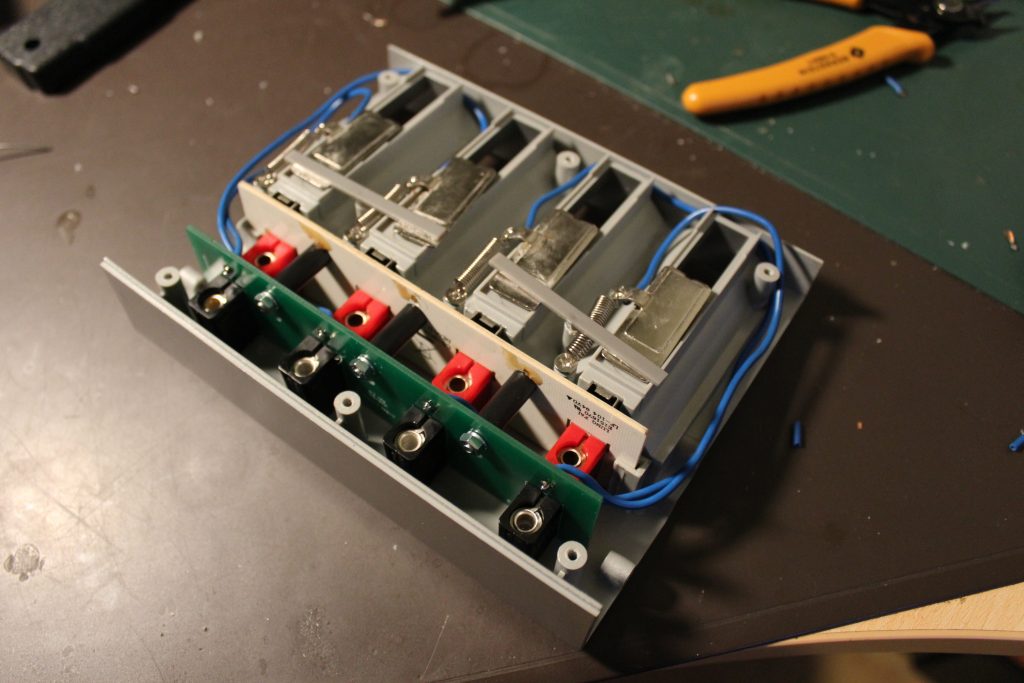

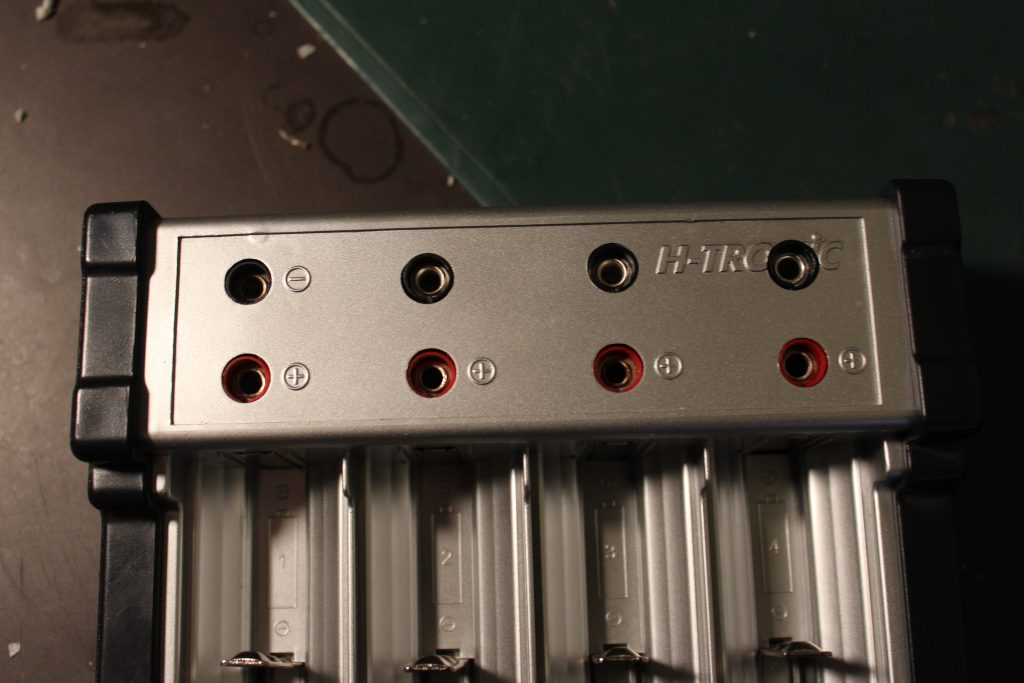

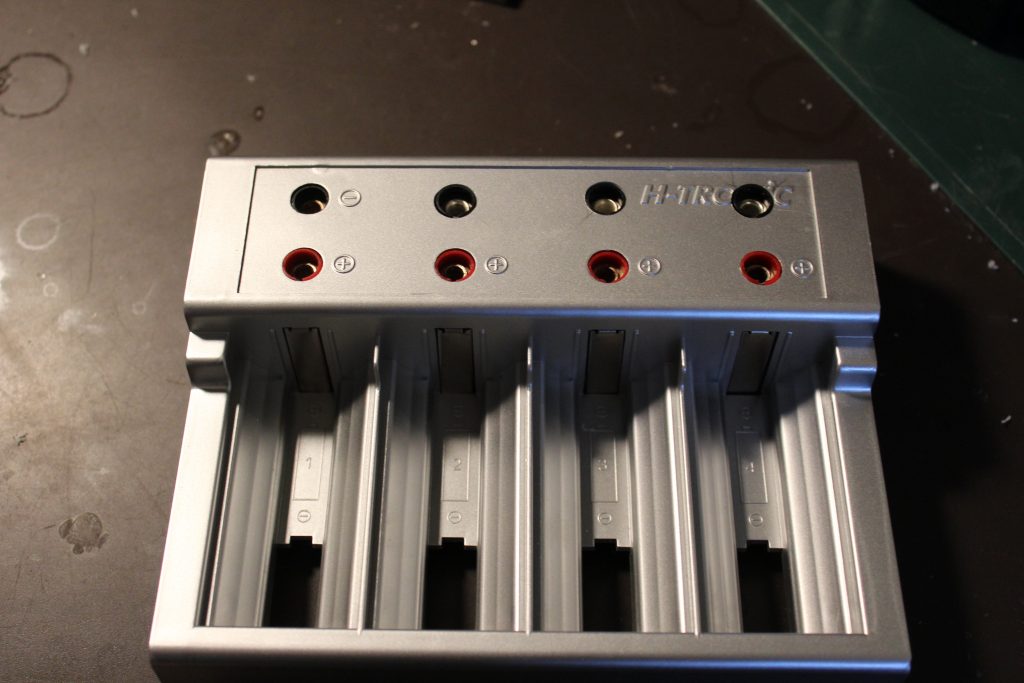

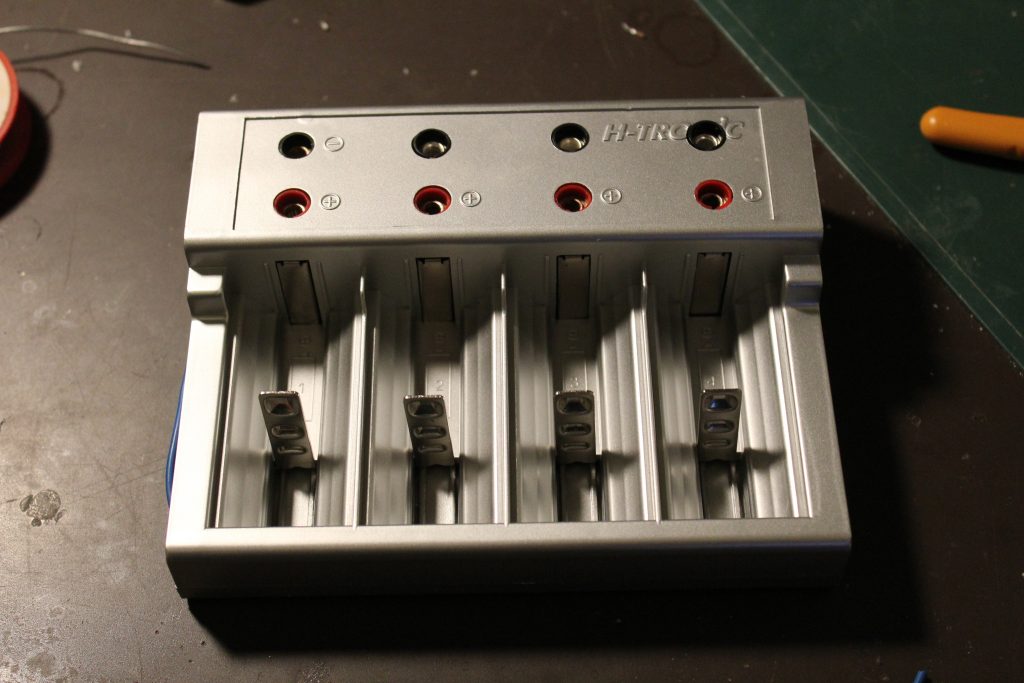

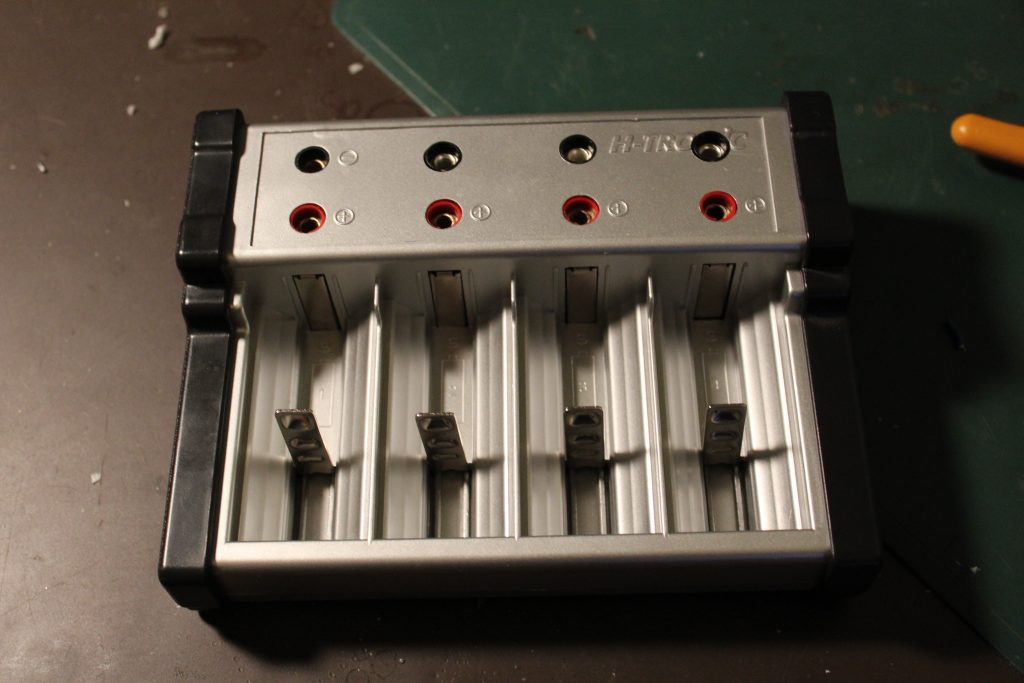

Here the modified product.
